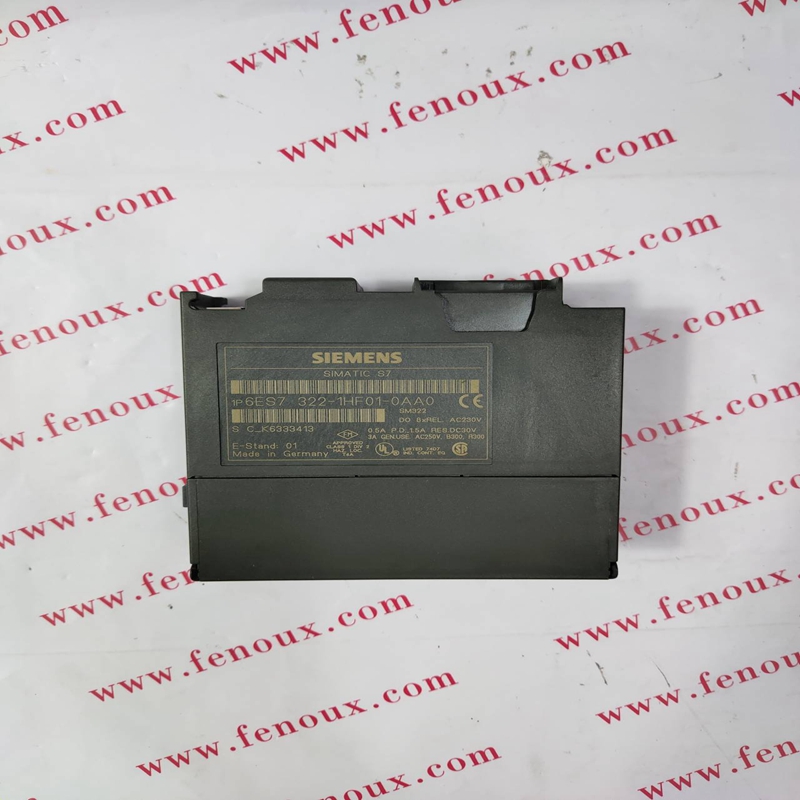

6ES7322-1HF01-0AA0
DIGITAL OUTPUT MODULE
SIMATIC S7-300
SM322
8 DIGITAL OUTPUT
2 AMP
24 VDC
230 VAC
1 X 20 POLE
ISOLATED
REPLACEMENT FOR 6ES7322-1HF00-0AA0

SIMATIC S7-300, DIGITAL OUTPUT SM 322,
OPTICALLY ISOLATED, 8 DO (RELAY),
1 X 20 PIN, 24V DC, 2A OR 230V AC, 2A
Rated value (DC) 24 V
Input current
from load voltage L+ (without load), max. 110 mA ; Current consumption of relay
from load voltage L1 (without load), max. 110 mA
from backplane bus 5 V DC, max. 40 mA
Power losses
Power loss, typ. 3.2 W
Digital outputs
Number/binary outputs 8 ; Relay
Lamp load, max. 50 W
Output current
for signal "1" rated value 2 A
for signal "1" minimum load current 5 mA
with resistive load, max. 2 Hz
with inductive load, max. 0.5 Hz
on lamp load, max. 2 Hz
mechanical, max. 10 Hz
Relay outputs
Rated input voltage of relay coil L+ (DC) 24 V ; 110 mA
Number of operating cycles, max. 300000 ; 230 V AC: 100000; 120 V AC: 200000; 24 V
DC: 300000 (at 2 A)
Switching capacity of contacts
with inductive load, max. 2 A ; 2 A (230 V AC), 2 A (24 V DC)
Switching frequency/contacts/at ohmic
load/maximum
2 A
Cable length
Cable length, shielded, max. 1000 m
Cable length unshielded, max. 600 m
Interrupts/diagnostics/status information
Alarms
Diagnostic alarm No
Diagnostic messages
Diagnostics No
Wire break No
Short circuit No
Fuse blown No
Missing load voltage No
Diagnostics indication LED
Rated load voltage PWR (green) No
Fuse OK FSG (green) No
Galvanic isolation
Galvanic isolation digital outputs
between the channels, in groups of 2
between the channels and the backplane bus Yes ; Optocoupler
Isolation
Isolation checked with 1500 V AC
