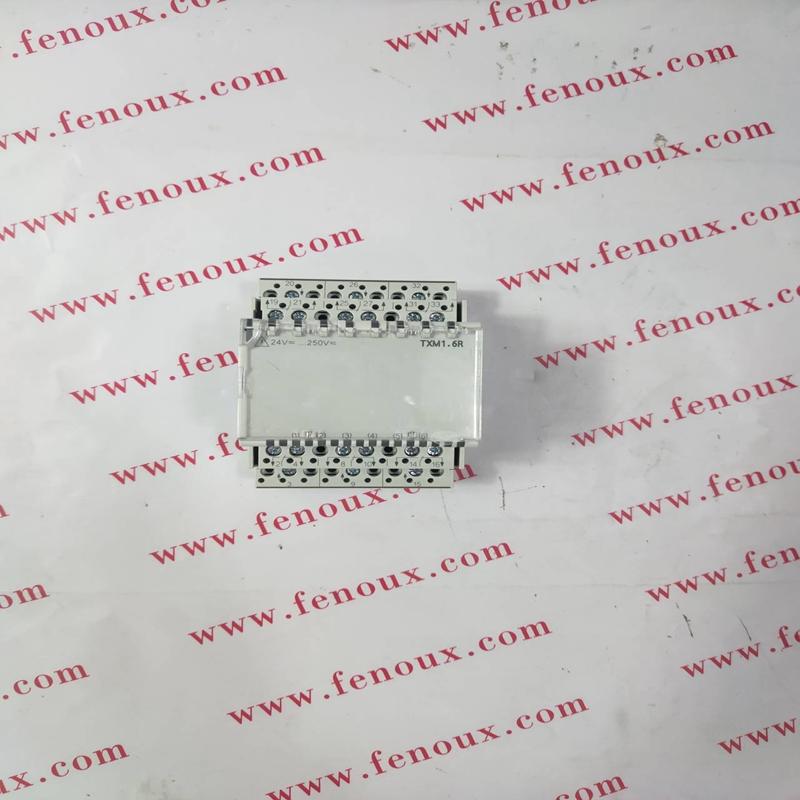

TXM1.6R Siemens OUTPUT MODULE

TXM1.6R Siemens OUTPUT MODULE

Packaging & Delivery

Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service

Product Details

• Two fully compatible versions:

– TXM1.6R: – 6 volt-free relay outputs

– Individual I/O point signaling with green I/O status LED

– TXM1.6R-M: As TXM1.6R, but with the following additional features

– Three-color I/O status LED (red, yellow or green)

– Local override (to ISO 16 484-2)

• 6 relay outputs, which can be individually configured as:

– Maintained contact or pulse, 1 … 3-stage

– Three-position control output with stroke algorithm

• Mixed voltages (AC 250 V mains voltage and SELV/PELV 24 V) as well as

mixed phases are permitted on adjacent I/O points of the module

• Compact DIN format, small footprint

• Separate terminal base and plug-in I/O module for convenient handling

– Self-establishing bus connection for maximum ease of installation

– Terminal isolation function for fast commissioning

– I/O module replaceable in seconds, without rewiring and without affecting

the full functioning of the remaining I/O modules

• Terminal strips are required to connect N and PE of the field devices

• Simple strategy for operation and display

– I/O status LED for each I/O point

– LEDs for fast diagnostics

• Double-sided labels for identification of all I/O points

Supply
(bus connector on side)
Operating voltage
Extra low voltage SELV or PELV
in accordance with HD384
DC 21.5 ... 26 V
Max. power consumption TXM1.6R 1.7 W
TXM1.6R-M
 (for the sizing of power supplies, see CM110562)
1.9 W
Protection Bus connector on side No protection against shortcut and
incorrect wiring with AC / DC 24 V
Switching outputs Number of switching outputs 6 (changeover contact)
External fuse protection for incoming cable
• Slow blow fusible link Max. 10 A
• Circuit breaker Max. 13 A
Circuit breaker tripping characteristic Type B, C or D to EN 60898
Contact data for AC Voltage range min. AC 12 V max. AC 250 V
Current, resistive load max. 4 A
Current, inductive load (cos phi ≥ 0.6) max. 3 A
Switching current min. 1 mA at AC 250 V
min. 10 mA at AC 12 V
Current on make max. 20 A during max. 10 ms
max. 10 A during max. 1 s
For UL applications 3 FLA, 9 LRA, 1/4 HP, 4 (3) A
Contact data for DC Voltage range min. DC 12 V, max. DC 30 V
Current, resistive load max. 3 A at DC 30 V
min. 10 mA at DC 12 V
Current on make max. 3 A
Service life of contact With 0.1 A resistive 8 million switching operations
for AC 250 V With 0.5 A resistive 2 million switching operations
With 4.0 A resistive (N/O) 0.2 million switching operations
Reduction factor with inductive load
(cos phi ≥ 0.6)
0.6 (max. 3 A inductive)
Insulation resistance Reinforced insulation between relay outputs and
system electronics
AC 3750 V, to EN 60 730-1
Mixed voltages (AC 250 V mains voltage and SELV/PELV 24 V) as well as
mixed phases are permitted on adjacent I/O points of the module
