F3237 HIMA 8 Channel Safety-Related Input Module

F3237 HIMA 8 Channel Safety-Related Input Module

Packaging & Delivery

Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service

Product Details

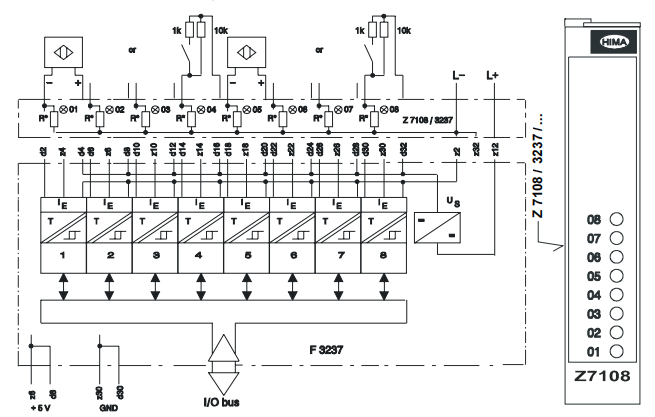

test routines are:
- Switch on and switch off cability
- Crosstalk of the input circuits by walking 0 test
- Function of the input filters
- Correct function of the module
- Short circuit and wire break of the sensor line
Function of LEDs are not tested.
Appertaining softw. building block: HB-RTE-. (for current version refer to
the description of the operating system).
Switching time approx. 10 ms
Operating points IE
 0 signal 0.35 ≤ IE ≤ 1.2 mA
 1 signal 2.1 ≤ IE ≤ 6.0 mA
 wire break ≤ 0.28 mA
 short circuit ≥ 6.5 mA

Line impedance ≤ 50 Ohm (acc. to DIN 19234)
Line length ≤ 1000 m (∅ = 0.5 mm2)
Supply voltage US 8.2 V
Shunt R* 681 Ohm; 1 %; 0.25 W
(R17 ... R24) part no. 00 0751681
Space requirement 4 TE
Operating data 5 V =: 90 mA; 24 V =: 170 mA
