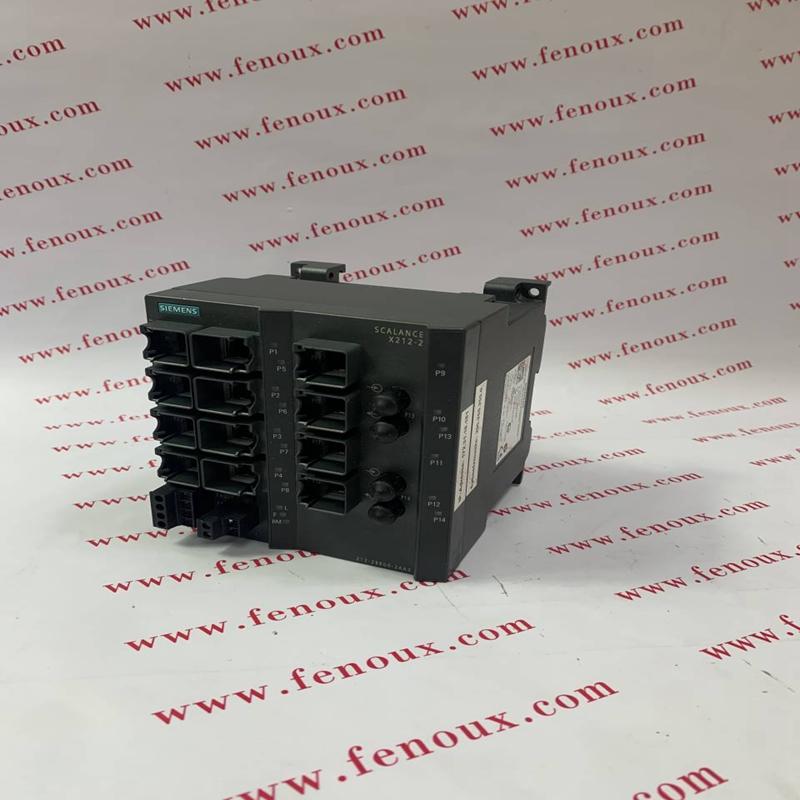

6GK5212-2BB00-2AA3 Siemens Managed IE switch

6GK5212-2BB00-2AA3 Siemens Managed IE switch

Packaging & Delivery

Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service

Product Details

SCALANCE X212-2, MANAGED IE SWITCH, 12 X 10/100MBIT/S
RJ45 PORTS, 2 X 100MBIT/S MULTIMODE BFOC, LEDDIAGNOSTICS, FAULT SIGNAL. CONTACT WITH SET BUTTON,
REDUNDANT POWER SUPPLY PROFINET-IO DEVICE,
NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY
MANAGER, INCL. ELECTRONIC MANUAL ON CD, C-PLUG
OPTIONAL
Transfer rate 10 Mbit/s, 100 Mbit/s
Interfaces / for communication / integrated
Number of electrical connections
● for network components or terminal equipment 12
Number of 100 Mbit/s ST(BFOC) ports
● for multimode 2
Number of 100 Mbit/s SC ports
● for multimode 0
Number of 1000 Mbit/s LC ports
● for multimode 0
● for single mode (LD) 0
Interfaces / others
Number of electrical connections
● for signaling contact 1
● for power supply 1
● for redundant voltage supply 1

Type of electrical connection
● for signaling contact 2-pole terminal block
● for power supply 4-pole terminal block
design of the removable storage
● C-PLUG Yes
Signal-Inputs/outputs
Operating voltage / of the signaling contacts
● at DC / Rated value 24 V
Operating current / of the signaling contacts
● at DC / maximum 0.1 A
Supply voltage, current consumption, power loss
Type of voltage / of the supply voltage DC
Supply voltage
● external 24 V
● external / minimum 18 V
● external / maximum 32 V
Product component / fusing at power supply input Yes
Fuse protection type / at input for supply voltage 1.1 A / 33 V
Consumed current / maximum 0.33 A
Power loss [W]
● at DC / at 24 V 7.92 W
Permitted ambient conditions
Ambient temperature
● during operation -40 ... +60 °C
● during storage -40 ... +70 °C
● during transport -40 ... +70 °C
Relative humidity
● at 25 °C / without condensation / during
operation / maximum
95 %
Protection class IP IP30
Design, dimensions and weight
Design compact
Width 120 mm
Height 125 mm
Depth 124 mm
Net weight 1.2 kg
Mounting type
● 35 mm DIN rail mounting Yes
● wall mounting Yes
● S7-300 rail mounting Yes
● S7-1500 rail mounting No
