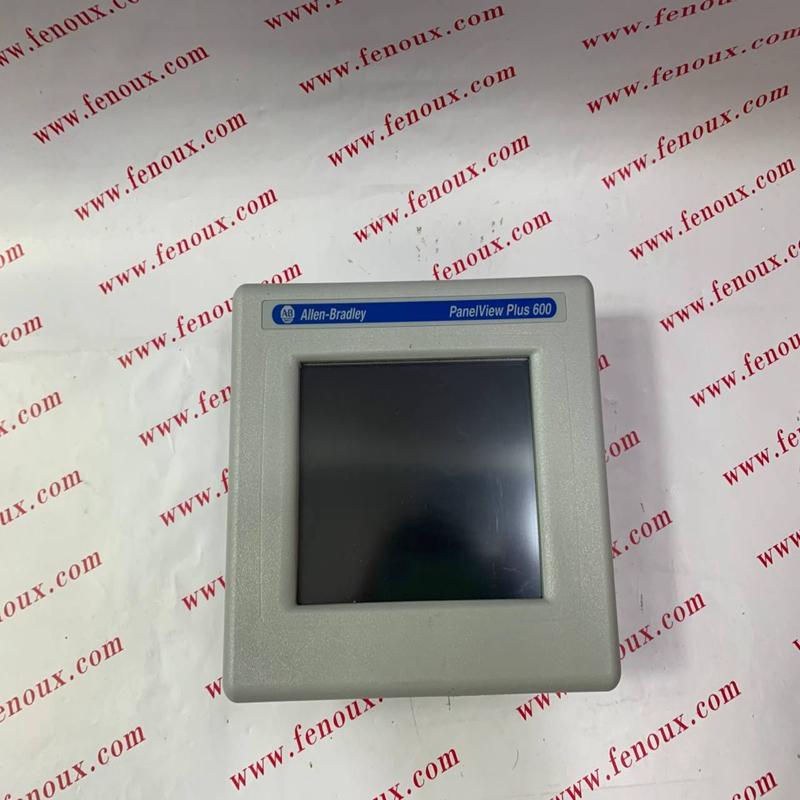

2711PC-T6C20D8 Allen-Bradley OPERATOR INTERFACE

Device The serial device your terminal is connected
to.
PLC_CH0
KF2
SLC_CH0
KF3
KFC
KFC15
AC_CH0
Error Check Type of error checking used. Error checking is
automatically configured if Use Auto Config
is set to Yes.
BCC, CRC
Parity Type of parity used. The parity is
automatically configured if Use Auto Config
is set to Yes.
None, Odd, Even
Stop Bits Number of stop bits used. 1 or 2
Ack Timeout Ack/Poll timeout value in ms. 20…60,000 ms
Max Retries Maximum number of retries before the serial
driver fails.
0…255
Station Station number based on a specific device. PLC_CH0 0…77 (octal)
KF2 0…77 (octal)
SLC_CH0 0…31
KF3 0…31
KFC 1…99
KFC15 1…99
AC_CH0 0…255
Baud Rate Data rate at which serial driver
communicates. The baud rate is
automatically configured if Use Auto Config
is set to Yes.
110
300
600
1200
4800
9600
19,200
38,400
115,200
Use Auto Config Automatically or manually configures the
baud rate, parity, and error checking
parameters.
Yes (auto configure)
No (manual configure)
Com Port Communication port used on the terminal. 1 (COM1)
2 (COM2)
Device Name (1)
(1) Check with your network administrator to determine a valid device name.
Name that identifies the terminal to
other computers on the network.
1…15 characters
A leading character in the
range of a through z or
A through Z.
Remaining characters in the
range of a through z,
A through Z, 0…9,
or - (hyphen)
Device Description Provides a description of the
terminal.
50 characters max
