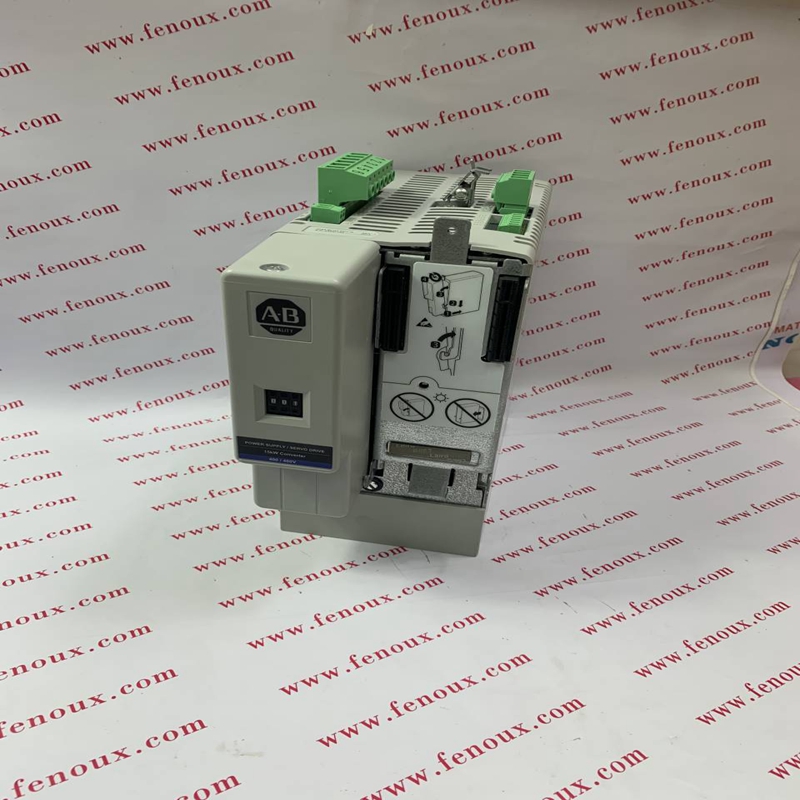

2094-BC02-M02-M Allen-Bradley Integrated Power Axis Module

2094-BC02-M02-M Allen-Bradley Integrated Power Axis Module

Packaging & Delivery

Product Details

AC input voltage 324…528V rmsthree-phase (360…480V nom)
AC input frequency 47…63 Hz
Main AC input current
Nom (rms)
Max inrush (0-pk) (1)
(1) All IAM power modules are limited to 2 contactor cycles per minute (with up to 4 axes), or 1 contactor cycle per minute (with 5…8 axes). The cycle capability also depends on the converter power
rating and the total system capacitance. To calculate cycle capability, refer to the Kinetix 6200 and Kinetix 6500 Modular Multi-axis Servo Drives User Manual, publication 2094-UM002.
10.0 A
11.0 A
24.0 A
22.0 A
44.0 A
31.1 A
71.0 A
62.2 A
DC input voltage (common bus follower) 458…747V DC
DC input current (common-bus follower) 9.0 A 22.6 A 41.5 A 67.7 A
Control power AC input voltage 95…264V rmssingle-phase (110…240V rms nom)
Control power AC input current
Nom (@ 220/230V AC) rms
Nom (@ 110/115V AC) rms
Max inrush (0-pk)
6 A
6 A
98 A (3)
(3) For eight axis systems with 230V AC control input voltage and 50 °C (122°F) ambient temperature the maximum inrush duration is less than 1/2 line cycle. To calculate the maximum inrush duration
for other configurations, refer to the Kinetix 6200 and Kinetix 6500 Modular Multi-axis Servo Drives User Manual, publication 2094-UM002.
Control power cycling, max 2 cycles per minute with a 90% on-time, 10% off-time duty cycle
Nominal bus output voltage 650V DC
Line loss ride through 20 ms
