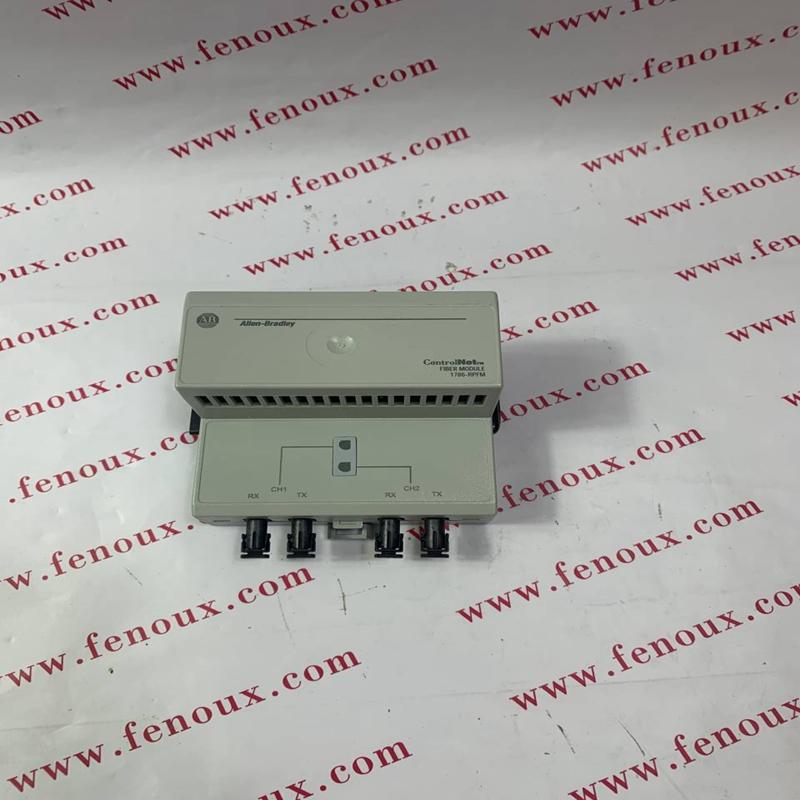

1786-RPFM Allen-Bradley Repeater Medium Distance Fiber Module

Temperature, operating
IEC 60068-2-1 (Test Ad, Operating Cold)
IEC 60068-2-2 (Test Bd, Operating Dry Heat)
IEC 60068-2-14 (Test Nb, Operating Thermal Shock)
0…60 °C (32…140 °F)
Temperature, surrounding air, max 60 °C (140 °F)
Voltage and current ratings, max Input: 700 mA @ 24V DC max, SELV(1)
Output: 1.6 A @ 5V DC
(1) For applications within the U.S., use a power supply that is appropriately certified as Class 2 per the definition in the National Electrical Code, ANSI/NFPA 70, Article 725. For applications outside the U.S., use a power supply with safety extra low voltage (SELV) or protected extra low voltage
(PELV) output. A power supply with SELV or PELV output is built with appropriate isolation to withstand single fault conditions. The output cannot exceed 30V rms, 42.4V peak, or 60V DC under fault conditions.
Backplane: 400 mA @ 5V DC max Backplane: 300 mA @ 5V DC max Backplane: 400 mA @ 5V DC max Input: 570 mA @ 5V DC max
Relay: 900 mA @ 30V DC, Class 2,
resistive only
Power consumption, max 16.8 W 2 W 1.5 W 2 W 2.8 W
Power dissipation, max 8.8 W 2 W 1.5 W 2 W 2.8 W
Isolation voltage N/A (SELV), functional insulation type,
ControlNet to system
N/A (SELV), functional insulation
type, ControlNet to system and
between ControlNet channels
— — 50V (continuous), basic insulation
type, relay contacts to system
Wire size 0.21…3.3 mm2
 (24…12 AWG) solid or
stranded copper wire that is rated at
105 °C (221 °F) or greater,
1.2 mm (3/64 in.) insulation max for
power connections
NA — — 0.25…2.5 mm2
 (22…14 AWG)
solid or stranded copper wire that is
rated at 105 °C (221 °F) or greater,
1.2 mm (3/64 in.) insulation max for
power connections
Wiring category 2 - on power ports
2 - on ControlNet ports(2)
(2) Use this Conductor Category information for planning conductor routing. See Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1.
2 - on ControlNet ports(2) — — 2 - on relay ports(2)
Enclosure type rating None (open-style)
North American temp code T5 T5 T5 T5 T4A
ATEX temp code T5 T5 T5 T5 —
IECE x temp code T5 T5 T5 T5 —
