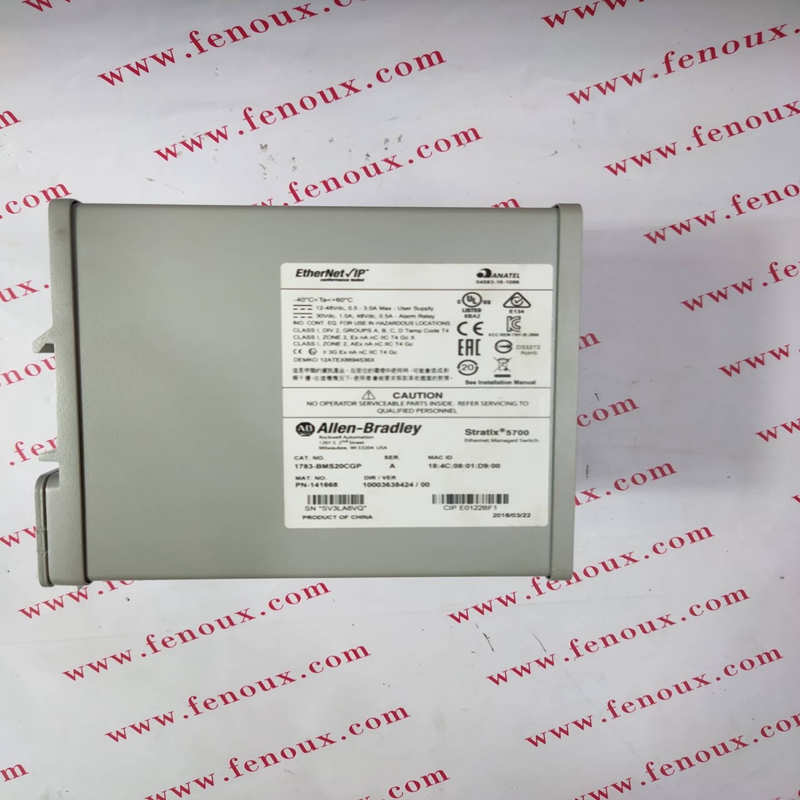

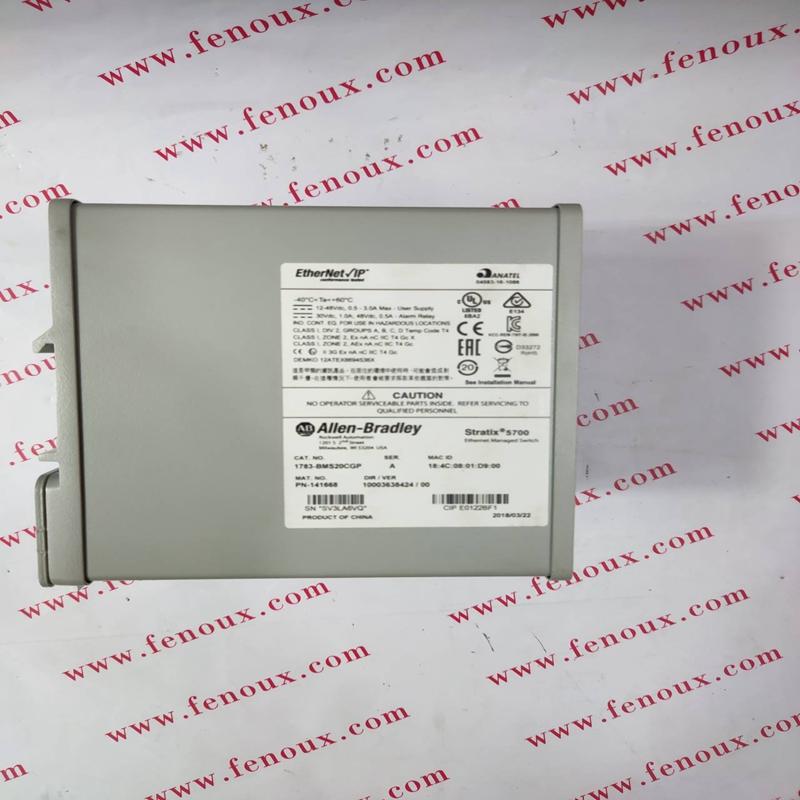

1783-BMS20CGP Allen-Bradley ETHERNET SWITCH

Ethernet
connection(1)
(1) See page 55 for recommended products.
RJ45 connector according to IEC 60603-7, 2- or 4-pair Category 5e minimum cable according to
TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702
—
DC power connection 0.5…0.8 mm2
(20…18 AWG) solid or stranded copper wire rated at 75 °C (167 °F) or greater, 1.2 mm (3/64 in.) insulation max, 6.3 mm (0.25 in.) ±0.5 mm
(0.02 in.) strip length
Alarm connection 0.5…0.8 mm2
(20…18 AWG) solid or stranded, UL/CSA-rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire, 6.3 mm
(0.25 in.) ±0.5 mm (0.02 in.) strip length
Ground connection 4.0 mm2
(12 AWG) min, stranded copper wire
SFP modules(2)
(2) SFP modules supported only on switches with combo ports or SFP slots.
• 1783-SFP100FX
• 1783-SFP1GSX
• 1783-SFP100LX
• 1783-SFP1GLX
Memory card 1784-SD1
Torque 0.23 N•m (2.0 lb•in) on power and alarm connectors
0.96 N•m (8.5 lb•in) max on ground terminals
0.23 N•m (2.0 lb•in) on power and
alarm connectors
0.4 N•m (3.5 lb•in) max on
ground terminals
Weight, approx 1.11 kg (2.45 lb) 1.25 kg (2.75 lb) 1.38 kg (3.05 lb) 2.04 kg (4.50 lb) 1.22 kg (2.69 lb)
Wiring category(3)
(3) Use this conductor category information for planning conductor routing. Refer to Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1.
3 - on console and alarm ports
2 - on DC power ports
2 - on Ethernet ports
3 - on console ports
2 - on DC power and alarm ports
Enclosure type rating None (open-style)
Pilot duty rating Alarm not rated
North American
temp code
T4
IEC temp code T4
